Manufacturer parts list

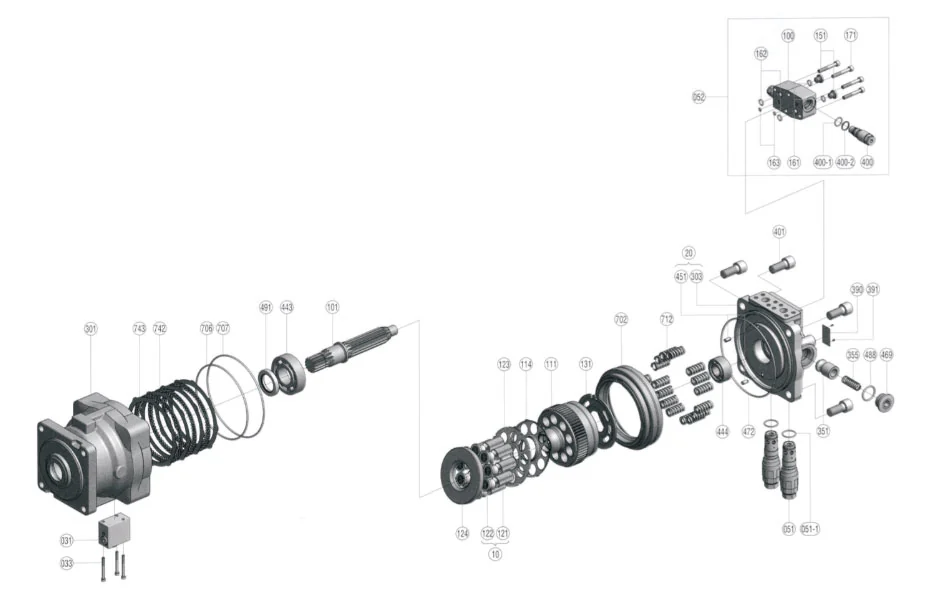

Swing motor parts list (manufacturer data)
40 published lines, exactly as the manufacturer lists them: drawing position, part name, part number and quantity per set. A drawing position can carry more than one number - the difference is the model or the control variant, so send us the number stamped on the old part and the machine it came off.
| Pos. | Part name | Part number | Qty / set | Remark |
|---|---|---|---|---|
| 10 | PISTON ASS'Y | 37061123-2073 | 1ST | |
| 303 | VALVE CASING H2 | 3723230-0225 | 1 | * |
| 303 | VALVE CASING H4 | 3723230-0435 | 1 | * |
| 303 | VALVE CASING H0 | 3723230-0184 | 1 | * |
| 303 | VALVE CASING H1 | 3723230-0178 | 1 | * |
| 451 | SPRING PIN | 0SPV614 | 2 | |
| 101 | DRIVE SHAFT | 3724250-0367 | 1 | |
| 111 | CYLINDER BLOCK | 3724370-0914 | 1 | |
| 114 | SPRING PLATE | 3703330-0017 | 1 | |
| 123 | SET PLATE | 3724110-0044 | 1 | |
| 124 | SHOE PLATE | 3724670-0048 | 1 | |
| 131 | VALVE PALTE A | 3724710-0946 | 1 | |
| 301 | CASING E1 | 3723270-0620 | 1 | * |
| 301 | CASING E2 | 3723270-0621 | 1 | * |
| 351 | PLUNGER H | 3753700549 | 2 | |
| 355 | SPRING H | 3753700548 | 2 | |
| 391 | PIN (NAME PLATE) | 0SK2548 | 2 | |
| 401 | HEX SOCKET BOLT | 0SBM2045 | 4 | |
| 443 | ROLLER BEARING | PNJ307EVV | 1 | |
| 444 | ROLLER BEARING | PNJ2304EHT | 1 | |
| 469 | ROMH PLUG | 0R0MH30 | 2 | |
| 472 | O-RING | 00RWG40W | 1 | |
| 488 | O-RING | 00RBP28 | 2 | |
| 491 | OIL SEAL | PTCZ35MV | 1 | |
| 702 | BRAKE PISTON | 3724510-0011 | 1 | |
| 706 | O-RING | 00RWG38 | 1 | |
| 707 | O-RING | 00RWG41 | 1 | |
| 712 | BRAKE SPRING | 3703340-0660 | 20 | |
| 742 | FRICTION PLATE | 3724730-0008 | 3 | |
| 743 | SEPARATOR PLATE | 3724690-0008 | 4 | |
| 031 | TIME DELAY VALVE | 37024900336P | 1ST | * |
| 031 | TIME DELAY VALVE | 3702490-1721P | 1ST | * |
| 033 | HEX SOCKET BOLT | 0SBM670 | 3 | |
| 051 | RELIEF VALVE | V2CSG2 | 2ST | * |
| 051 | RELIEF VALVE | V2CSJ | 2ST | * |
| 051 | RELIEF VALVE | V2CW | 2ST | * |
| 052 | S,R,VALVE ASS'Y | V9409216208 | 1ST | * |
| 052 | S,R,VALVE ASS'Y | V0603298185 | 1ST | * |
| 052 | S,R,VALVE ASS'Y | V0603248163 | 1ST | * |
| 052 | S,R,VALVE ASS'Y | 50070627-4382 | 1ST | * |
Note from the manufacturer: check the main pump model number or the excavator model number before contacting us with an enquiry. The same caveat applies here - the position is shared across the family, the number is not.
Source and scope. The matrices, control codes, travel drive specifications and parts lists on this page are the manufacturer's published product data (PNM FK Co., Ltd., pnmfk.co.kr), harvested 2026-09-29. Our FLUTEK-range model pages carry the figures from the FLUTEK English catalogue dated 2024-11-25, and the K5V212 / K7V / further M5X / FTD model pages carry these same manufacturer figures - each model page names its own source under the specification table. The travel drive torque, speed, pressure, brake and mounting figures come from the manufacturer's FTD / FDNB travel device specification sheet (unit: mm), checked against the published cross-reference above. The pump power control codes (0 / 1 / 2 / 4 / 5 / 6 / 9 / H) and flow control codes (0 / N / P / M / E / C / D / T) follow the FRANK catalogue pump ordering-code page; the load sensing (L) row comes from the manufacturer sheet, which is also where its diagram comes from. The travel drive tonnage classes follow the FRANK catalogue for the five units it publishes. Part numbers and sizes are facts of the product, not marketing text. Confirm your machine model, shaft and control variant with us before ordering — and treat the manufacturer EPC as the final authority.
