Piston pump
K7V125
K7V125 series axial piston pump, harsher working environments, open circuits
K7V125 is an axial piston pump assembly in the FLUTEK catalogue, K7V125 series axial piston pump, harsher working environments, open circuits. Catalogue figures: 125 mL/r (max. 130) displacement, 35 MPa rated pressure, 40 MPa peak, 902 N·m maximum input torque. It is ordered in the field as F7V125.
Fast reply within 12 working hours · English / Русский / العربية / Français · Photo of your nameplate speeds up identification.

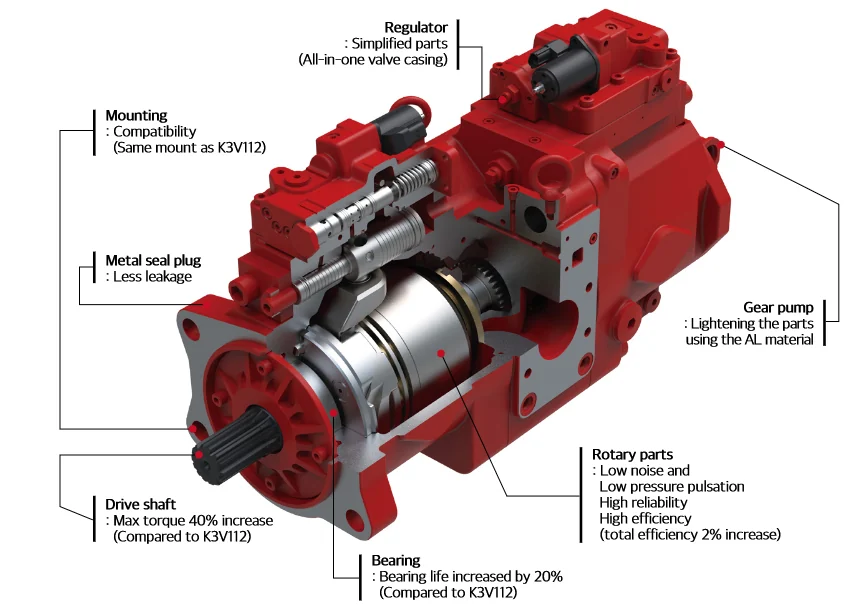

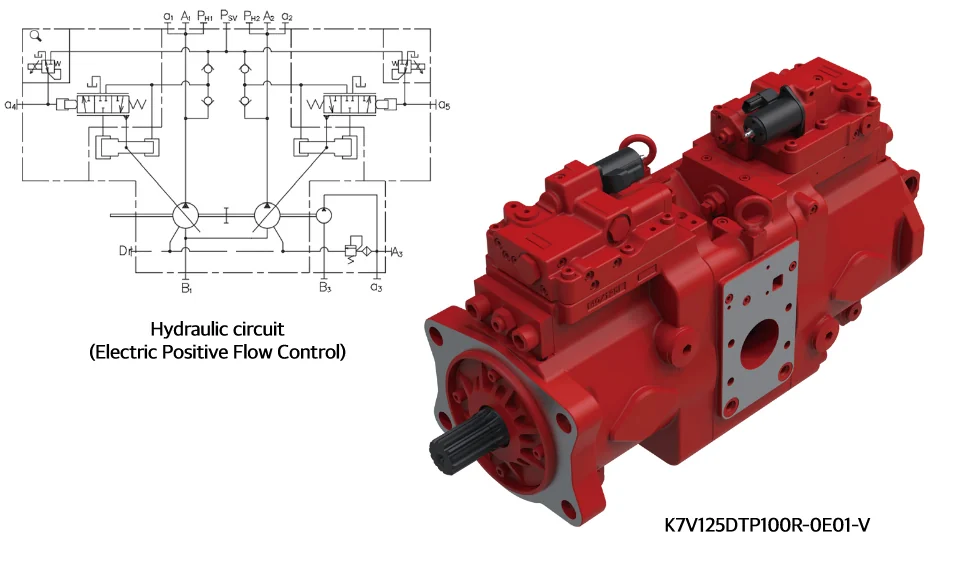

Photo: manufacturer's official K7V pump image (the unit pictured is a K7V125DTP100R). We photograph the exact unit we ship before dispatch — send us your nameplate.
Compatibility — which machines this fits
Fitment lists are compiled from public market data; contact us to confirm your exact machine and shaft / control variant.
Specifications
| Displacement | 125 mL/r (max. 130) |
|---|---|
| Rated pressure | 35 MPa |
| Peak pressure | 40 MPa |
| Max. speed | 2,700 min⁻¹ |
| Max. self-priming speed | 2,360 min⁻¹ |
| Max. input torque | 902 N·m |
| Max. PTO input torque | 294 N·m |
| Pump line | K7V125 series axial piston pump |
| Application class | harsher working environments, open circuits |
Cross reference / interchange
Buying against a number from a dismantled machine or an old invoice? Send it to us — we map it to the correct unit.
Key features
- Catalogue-verified specifications
- Shaft, regulator and control variant confirmed before dispatch
- Genuine-grade Korean build
- Full spare parts support (cylinder block, valve plate, swash plate, seal kit, regulator)
Supply & commercial terms
Lead time, packing, freight terms, payment and warranty are confirmed per order on the quotation — ask us and you get them in writing together with the price.
Request a quotation
Model and quantity are pre-filled. Add your machine, destination port and contact details — we reply with price, lead time and shipping options.
Where these figures come from
Specifications on this page are taken from the FLUTEK English catalogue dated 2024-11-25 and match the pumps and swing units we ship as China general agent. Machine fitment lists are cross-checked against our parts books before dispatch — send us your machine and pump nameplate and we confirm the correct shaft and control variant.
Reference data for selection purposes. Please confirm the exact shaft, regulator and control variant with our team before ordering.
Common faults on this unit, and what to check first
The diagnosis guides below start from the symptom, list the checks in the order a workshop should work through them, and say which parts usually solve it. Full index: diagnosis guides.
Foam or milky hydraulic oil
Oil, filtration and the system as a whole
Foam means air, milkiness means water, and both destroy the lubrication film.
Spools stick or lock when cold
Valve and pilot control
A spool that sticks when cold, or grabs in one position, is telling you about oil cleanliness, varnish or bore damage.
Machine weak when it is hot
Oil, filtration and the system as a whole
In high ambient temperatures the hydraulic system runs near its thermal limits.
Repair the pump or replace it
Oil, filtration and the system as a whole
The decision follows measurable evidence, not the age of the machine.
No pressure / no power at the pump
Pump and pressure supply
No pressure is rarely the pump alone. Use this checklist to separate pump wear from control, suction and relief problems in under…
Noise, vibration and rising oil temperature
Pump and pressure supply
Noise plus heat usually means air, starvation or internal leakage. Which one you have changes what you order.
Parts that usually solve them
Catalogue lines from the same families. Search the full library by part number from the parts library.
