Piston pump · P2
K5V140DTP
K3V112 / K5V140 tandem series, 27–33 t hydraulic excavator
K5V140DTP is an axial piston pump assembly in the FLUTEK catalogue, K3V112 / K5V140 tandem series, 27–33 t hydraulic excavator. Catalogue figures: 140 mL/r (per pump) displacement, 34.3 MPa rated pressure, 39.2 MPa peak, 843 N·m maximum input torque. It is ordered in the field as K5V140, K5V140DT, K5V140DTP1, K5V140S.
Fast reply within 12 working hours · English / Русский / العربية / Français · Photo of your nameplate speeds up identification.

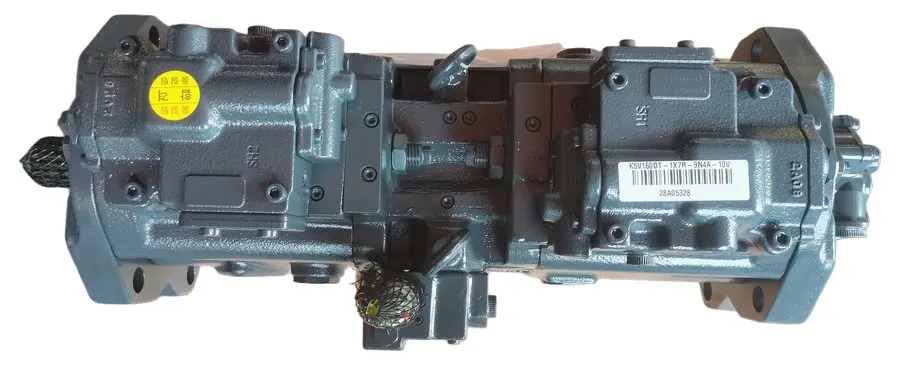

Photo shows a K5V160DT from the same K5V140 / K5V160 series - same body and regulator layout, different displacement plate.
Compatibility — which machines this fits
Fitment lists are compiled from public market data; contact us to confirm your exact machine and shaft / control variant.
Specifications
| Displacement | 140 mL/r (per pump) |
|---|---|
| Rated pressure | 34.3 MPa |
| Peak pressure | 39.2 MPa |
| Max. speed | 2,500 min⁻¹ |
| Max. self-priming speed | 2,160 min⁻¹ |
| Max. input torque | 843 N·m |
| Max. PTO input torque | 125 N·m |
| Pump line | K3V112 / K5V140 tandem series |
| Application class | 27–33 t hydraulic excavator |
Cross reference / interchange
Buying against a number from a dismantled machine or an old invoice? Send it to us — we map it to the correct unit.
Key features
- Catalogue-verified specifications
- Shaft, regulator and control variant confirmed before dispatch
- Genuine-grade Korean build
- Full spare parts support (cylinder block, valve plate, swash plate, seal kit, regulator)
Supply & commercial terms
Lead time, packing, freight terms, payment and warranty are confirmed per order on the quotation — ask us and you get them in writing together with the price.
Request a quotation
Model and quantity are pre-filled. Add your machine, destination port and contact details — we reply with price, lead time and shipping options.
Where these figures come from
Specifications on this page are taken from the FLUTEK English catalogue dated 2024-11-25 and match the pumps and swing units we ship as China general agent. Machine fitment lists are cross-checked against our parts books before dispatch — send us your machine and pump nameplate and we confirm the correct shaft and control variant.
Reference data for selection purposes. Please confirm the exact shaft, regulator and control variant with our team before ordering.
Common faults on this unit, and what to check first
The diagnosis guides below start from the symptom, list the checks in the order a workshop should work through them, and say which parts usually solve it. Full index: diagnosis guides.
Engine stalls or smokes under load
Pump and pressure supply
When the engine pulls down, the pump is usually asking for more torque than the engine can deliver.
Oil temperature keeps rising
Oil, filtration and the system as a whole
Over-temperature thins the oil and shortens seal life, so every function weakens.
Metal particles, dirty oil, short component life
Oil, filtration and the system as a whole
Contamination is the number one cause of repeat failures. Here is what to do after a failure so the new pump is not destroyed by…
Hoses burst, seals blow, the gauge needle jumps
Valve and pilot control
Hoses failing in the same place, filters splitting or a gauge needle that jumps are transient problems.
Machine slow or noisy when cold
Oil, filtration and the system as a whole
In low ambient temperatures the oil is the problem, not the pump.
All functions slow
Boom, arm and cylinder functions
When travel, swing, boom and bucket are all slow, the fault sits upstream of the individual circuits.
Parts that usually solve them
Catalogue lines from the same families. Search the full library by part number from the parts library.
