Travel motor · 18–22 t class
FTD45
Travel drive assembly — swash plate piston motor + two-stage planetary reducer
FTD45 is a travel motor assembly in the FLUTEK catalogue, Travel drive assembly — swash plate piston motor + two-stage planetary reducer. It is ordered in the field as FDT45. It is supplied as a complete unit rather than as loose parts, with the control variant matched to the machine.
Fast reply within 12 working hours · English / Русский / العربية / Français · Photo of your nameplate speeds up identification.

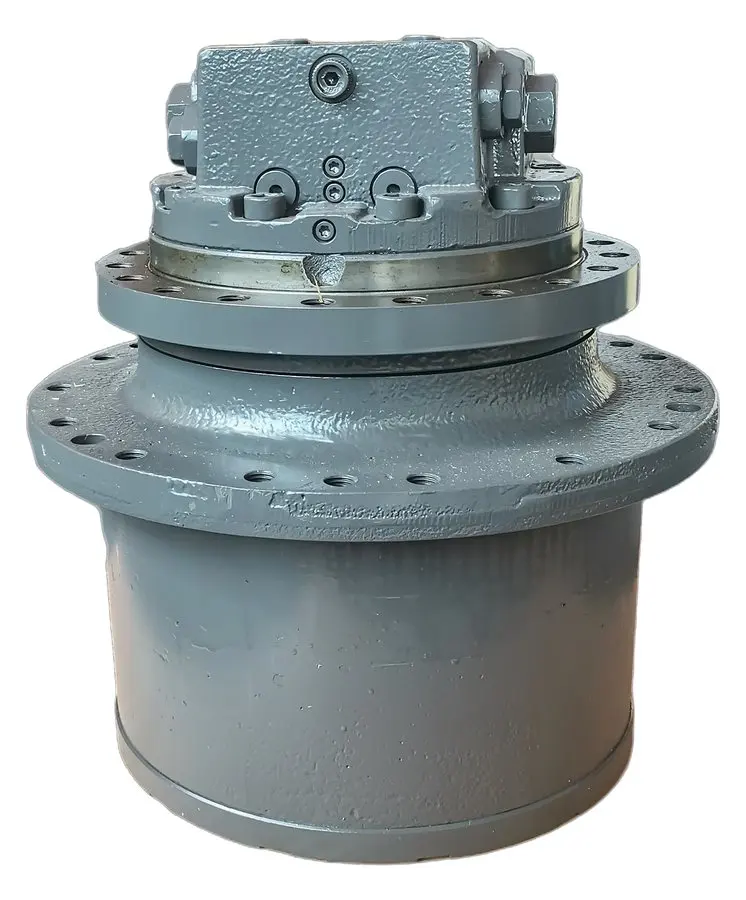

Photo: our own unit photo. Structure drawing: FRANK English sample catalogue, page 64.
Compatibility — which machines this fits
Parts for travel devices are confirmed per order against the factory parts book - there is no published position-numbered parts table for this family, so we do not print one. Send the machine model and the unit nameplate and we confirm the internal parts, seal kit and brake parts before quoting. Fitment lists are compiled from public market data; contact us to confirm your exact machine and shaft / control variant.
Specifications
| Application class | 18–22 t excavator / drilling rig / crawler crane |
|---|---|
| Max flow | 252 L/min |
| Relief valve set pressure | 34.3 MPa |
| Motor displacement | 180.1 cm³ (max.) |
| Gear ratio | 45.255 |
| Theoretical output speed | max. 58.8 min⁻¹ |
| Theoretical output torque | max. 44,520 N·m |
Cross reference / interchange
Buying against a number from a dismantled machine or an old invoice? Send it to us — we map it to the correct unit.
Key features
- Motor integrates safety relief valve, balance valve and mechanical parking brake
- Two-stage planetary reducer, compact and lightweight
- Optimised valve plate and oil ducts for lower noise and pressure pulsation
- Shock relief valve for better controllability
Supply & commercial terms
Lead time, packing, freight terms, payment and warranty are confirmed per order on the quotation — ask us and you get them in writing together with the price.
Request a quotation
Model and quantity are pre-filled. Add your machine, destination port and contact details — we reply with price, lead time and shipping options.
Where these figures come from
Specifications on this page are taken from the FLUTEK English catalogue dated 2024-11-25 and match the pumps and swing units we ship as China general agent. Machine fitment lists are cross-checked against our parts books before dispatch — send us your machine and pump nameplate and we confirm the correct shaft and control variant.
Reference data for selection purposes. Please confirm the exact shaft, regulator and control variant with our team before ordering.
